NSDRC Micro Bec

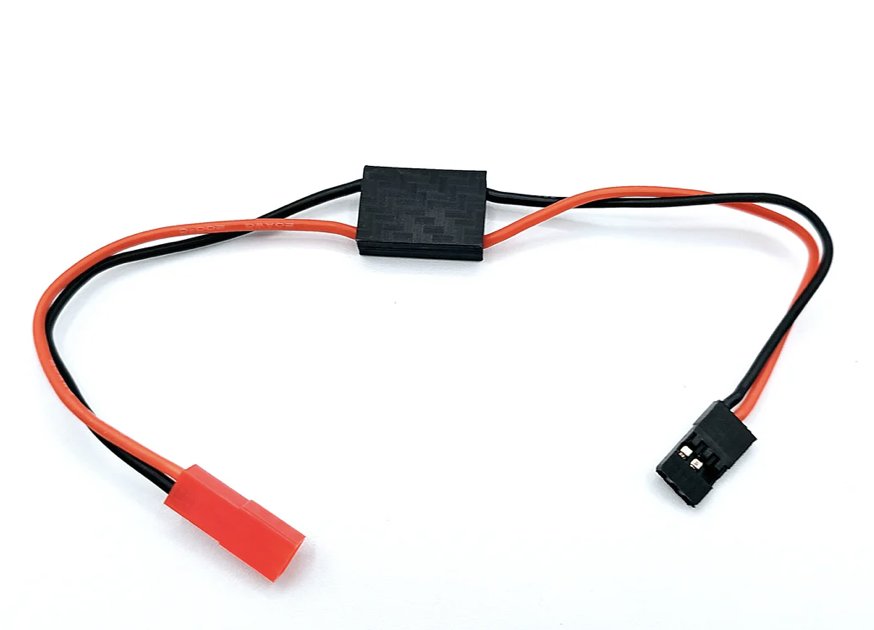

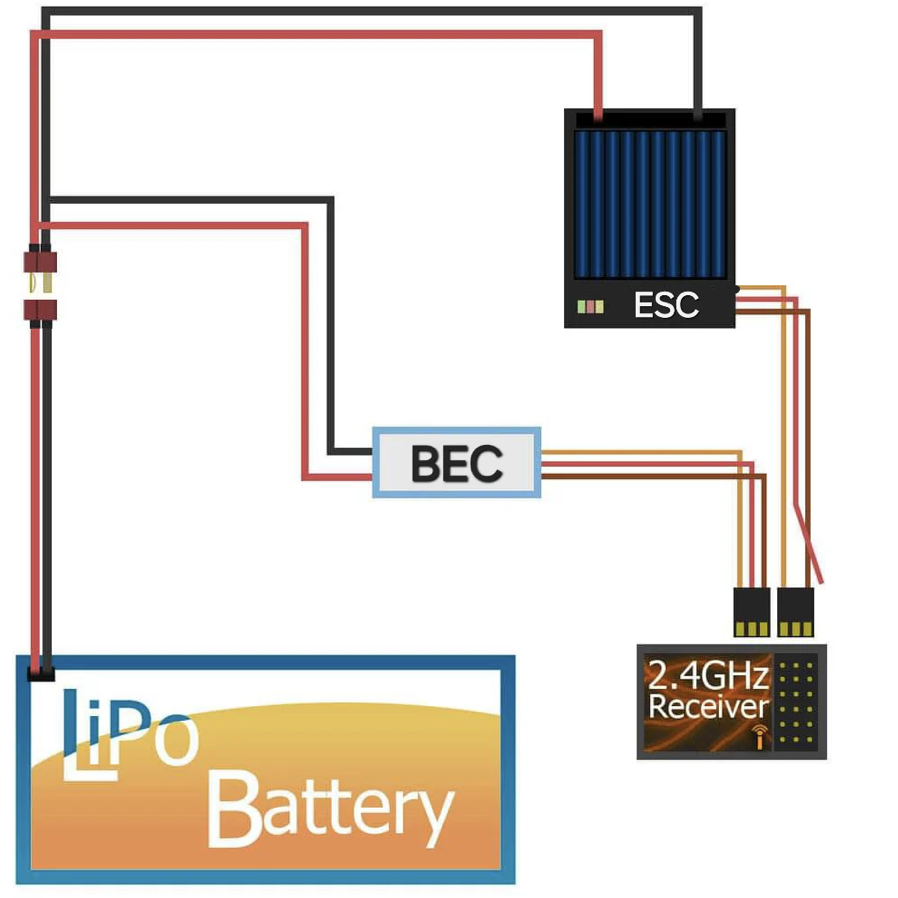

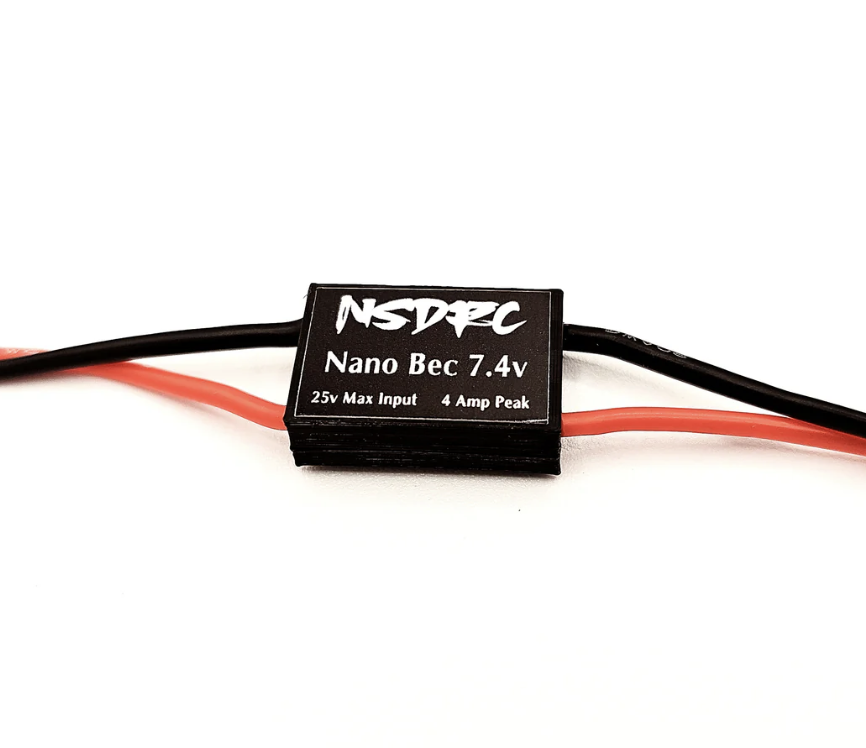

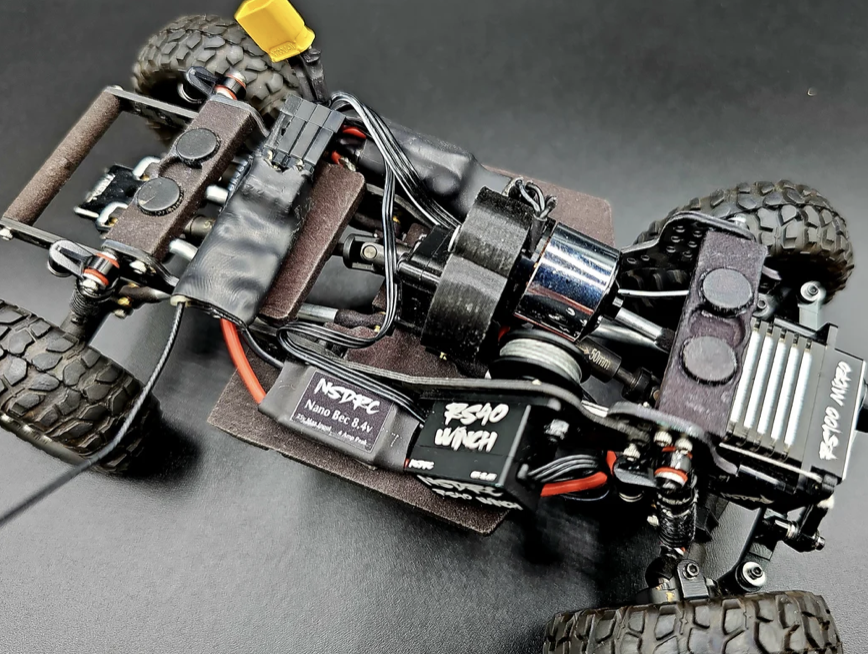

This is our Micro Bec we’ve made specifically for our micro servos and winches. Stock Micro rc electronics are typically pretty weak and need a boost when running some high power products. We offer 3 voltage options, and 3 options for how to connect the bec to power. These also work great with some of the new 1/10 scale escs on the market that do not have a bec, these can power your receiver for those applications.

Input Voltage: 2s – 6s lipo

Output Voltage: 6v – 8.4v

Output Amps: 2 amp continous, 3 amp peak

Dimensions: 11mm x 17mm

* Splash proof, Not Waterproof!

*Voltage is not adjustable, they will be permanently set to the voltage you choose.

*We will not warranty damage caused by water, Physical damage, Improper use, or tampering.

*We will not be held liable for any damage caused by use of this device.

*Please be sure to abide by the maximum operating voltage of your electronics to avoid any damage.
